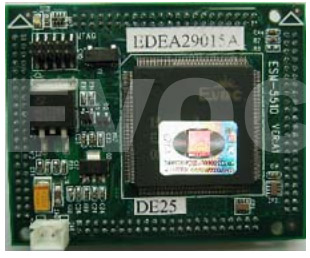

Product Models:ESM-5510CLD
| |
EVOC ARM7 RISC
Product
| |
| |
| XSCALE Industrial Mainboard |
| |
|
 |
| |
· Intel PXA255 CPU on board,kernel
is 200-400MHz Intel xScale
· 32MB FLASH / 64MB SDRAM on board,
WinCE.net/Linux operating system installed in advance
· CF card interface on board
· LCD interface on board, support
2,4,8,16 bit colour depth,most resolution is up to 1024-768
· Touchscreen interface on board,
small keyboard inrerface,support 4 / 5 line tuchscreen
· AC97 audio interface on board,
MIC-IN¬SPK-OUT
· 1 USB,3 RS232
· Support EVOC-EBI system extending
bus interface
· Single +5V power
· Dimension:146mm-203mm |
| |
|
| |
|
|
