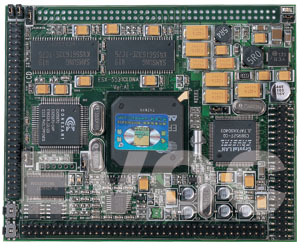

· CirustLogic EP9312/5 CPU,kernel
is 200MHz ARM920T+200MHz DSP
· 32MB FLASH/64MB SDRAM, WinCE.net/Linux
operating system installed in advance
· IDE,CF card interface on board
· LCD,LVDS support STN,DSTN,TFT,LCD
on board, support 2,4,8,16 bit colour depth,most resolution
is up to 1024”Į768
· Touchscreen interface on board,
8x8 small keyboard inrerface,PS/2 interface,support 4
/ 5 line tuchscreen
· AC97 audio interface on board,
MIC-IN£¬SPK-OUT
· 3 USB,3 RS232,support USB2.0
HOST, serial interface RS485 optional
· Support EVOC-EBI system extending
bus interface
· Single +5V power
· Dimension:97mm-79mm |
| |
|
|
