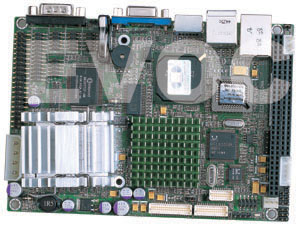

Model:     EC3-1371CLDN



• Introduction

3.5″386 Single Board Computer, with CPU and DRAM/ LCD/CRT/SSD/LAN/4COM





• Features

M6117C-40M main chip
GX1 single chip low-power CPU on-board
4/8MB EDO DRAM system memory on board
CHIPS F65545 graphic controller, support kinds of common used TFT/DSTN LCD screen
Realtek RTL8019AS Ethernet controller
30.5us --512s watchdog timer
4 COM
PC/104 bus



• Specifications

Construction： 3.5″ single board construction
Processor： ALi M6117C，up to 40Mhz，compatable INTEL 386SX CPU
System chipset： ALi M6117C
System memory：4M/8M (optional) EDO DRAM on board
BIOS： AMI
On-board video：CHIPS F65545 1MB display memory , flat display MONO/TFT/DSTN ,support CRT and LCD display simultaneously , flat display bus：24 bits, LCD type：pretermission leave factory（BIOS enacted）TFT 800*600
On-board LAN：Realtek RTL8019AS 10Mbps RJ-45，with LED, compatables NE2000
IDE controller： One enhanced IDE,support two PIO harddisks
Multi I/O interface：One FDD interface, one parallel interface,there RS-232 ,one RS-232/485, one PS/2 K/M Interface
Solid state disk： M-system DiskOnChip2000
Watchdog timer： 30.5 us -- 512 s minutes programmable(space 30.5 us)
Digital I/O： 5 channel input,12 channel output
Expansion bus： PC/104 slot
Power supply ： Single +5V power supply (typical value 5V/0.8A)
Dimension ： 146 × 102mm
Operation Temperature：-20C--65C
Humidity： 5%~90%，Non-condensing
