                                                                           SMD Modules

     ---------------------------------------------------------------------------------------------

    HCLM3024X    HCLM2024X U315X   high power 1.56W
    HCLM3036X         HCLM2036X HCLM3072RGB
    (X = White, Red, Amber, Green, Blue color)
   -------------------------------------------------------------------------------------------

U315X

HCLM3024,3036,3072

HCLM2024,2036



Technical Data:



  HCLM2024X HCLM2036X HCLM3024X HCLM3036X HCLM3072RGB U315X   high power 1.56W
Operating Voltage DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V
Driving Current 13mA 20mA 20mA 30mA 60mA 130mA
Power Consumption 0.16W (W, R, A, B, G) 0.16W (W, R, A, B, G) 0.24W (W, R, A, B, G) 0.24W (W, R, A, B, G) 0.72W (W, R, A, B, G) 1.56W/each module
Operating Temperature -25ºC - 60ºC (-13F - 140F) -25ºC - 60ºC (-13F - 140F) -25ºC - 60ºC (-13F - 140F) -25ºC - 60ºC (-13F - 140F) -25ºC - 60ºC (-13F - 140F) -25ºC - 60ºC (-13F - 140F)
Storage Temperature -40ºC - 85ºC (-40F - 185F) -40ºC - 85ºC (-40F - 185F) -40ºC - 85ºC (-40F - 185F) -40ºC - 85ºC (-40F - 185F) -40ºC - 85ºC (-40F - 185F) -40ºC - 85ºC (-40F - 185F)


Specifications (Ta=25≧):





Item No.

Radiation Color

View Angle 2?1/2

(degree) Typ.

Luminous Flux (lm)

Wavelength (nm) CCT (k)

HCLM3024w

White

120<

8.5

6500K

HCLM3036w

White

120<

11

6500K

HCLM2024w

White

120<

5.7

6500K

HCLM2036w

White

120<

6

6500K

HCLM3072RGB

RGB

140<

18



U315w

White

140<

61

6500K

HCLM-3024R-12

Red

120<

8.5

625nm

HCLM-3024A-12

Amber

120<

8.5

592nm

HCLM-3024G-12

Green

120<

11

525nm

HCLM-3024B-12

Blue

120<

4

470nm

Module Dimensions:

HCLM3024, 3036, 3072RGB: 4.5cm 〜 2cm; HCLM2024, 2036: 3cm x 1cm; U315: 4.5cm x 2cm;

Each module contains 3 or 2 SMD LEDs, the distance between two SMD LEDs is 1.5cm.

Packing:

Packing Material: static-free bag.

HCLM3024, 3036, 3072RGB:20 modules per string; 5 strings (total 100 modules) per bag; length of per string 210cm; distance between the centers of two modules 10.5cm.

HCLM2024, 2036:30 modules per string; 10 strings (total 100 modules) per bag; length of per string 210cm; distance between the centers of two modules 7cm.

U315:10 modules per string; 2 strings (total 20 modules) per bag; length of per string 200cm; distance between the centers of two modules 20cm.

Each string can be connected with 2 (one orange & one blue) Two Ways of Waterproof Wiring Connectors.

IP class : IP22

certificate: CE



Applications:

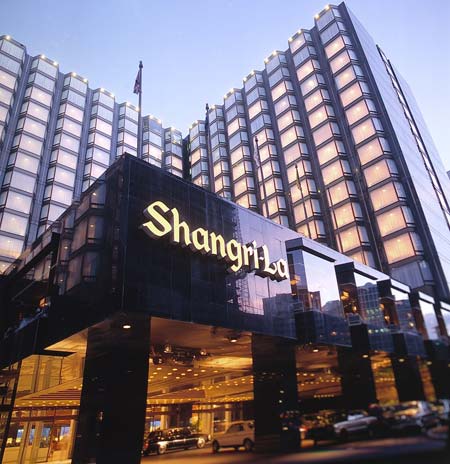

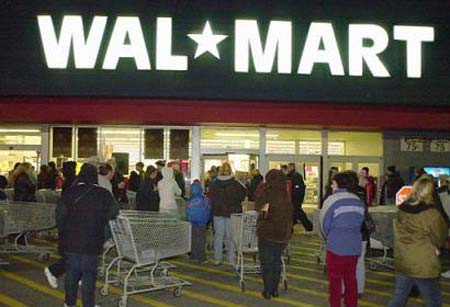

Signal, Architechture, General Lighting, Corporate Image, Spectacular
