LED TUBE LIGHT
|
LED TUBE LIGHT is magic combination
of LEDs and PCB board, connected in series and parallel, and
initiated from Red, Green, Blue, which offer versatile colors.

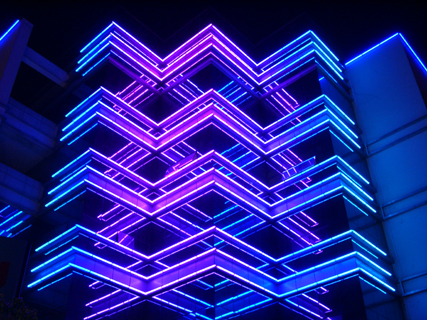

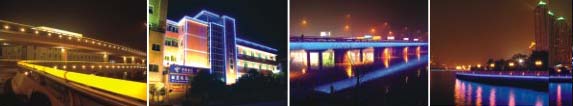

LNT is widely used to decorate building, bridge, city plaza,
casino, stage, etc, due to its perfect performance, such as
waterproof, easy installation, low power consumption, color-
mixed beam, uniform light.
Characteristic:
1. Working Voltage: 90-265V;
2. Shape of tube: O-shaped, D-shaped, flat;
3. Dimension of tube: Ø 30mm, Ø 50mm, Ø 80mm, Ø 110mm;
4. Material of tube: Milky or clear in PC ;
5. Function: Single color: Tricolor;Digital control;
6. Degree of Waterproof: IP55
--------------------------------------------------------------------------------------------------------------
|
---------------------------------------------------------------------------------------------------
LED Tube Light-Tri-Color Type
|
InputVolt. Range:
Control Mode:
Tube Dia:
Color of Tube:
Qty of LED:
Power Consumption:
Protection Rating: |
110V, 240V
with controller (LNT-C1) , IC inside (without
controller)
50mm, 80mm, 110mm
CLear, Milky White
120pcs(R40, G40, B40), 144pcs(R48, G48, B48)
12W, 16.8W
IP44 |
e.g.
LNT-T-50mm-144-240V-MW (IC)
Tri-Color Type, 50mm Tube/Milky White,
144pcs LEDs, 240V, IC inside
LED Tube Light-Single Color
Type
|
Input Volt.
Range:
Color Range:
Tube Dia:
Color of Tube:
Qty of LED:
Power Consumption:
Protection Rating: |
12V, 24V,
110V, 240V
White, Red, Yellow, Blue, Green
26mm, 50mm, 80mm,l10mm
CLear, Milky White
120pcs, 144pcs
12W, 16.8W
IP44 |
|
e.g. LNT-S-26mm-120-12V-CL-W
Single ColorType, 26mm Tube/clear, 120pcs white LEDs,
12V
|
----------------------------------------------------------------------------------------------------
Function of
controller (LNT-C2)
1. BLACK
2. STATIC RED
3. STATIC GREEN
4. STATIC BLUE
5. STATIC YELLOW
6. STATIC PURPLE
7. STATIC CYAN
8. STATIC WHITE
9. COLOR CHANGE
10.FLOW CHASE
LNT-C3
e.g.
LNT-A-50mm-144-240V-CL
Audio Type, 50mm Tube/Clear, 144pcs LEDs, 240V
21. R & G
FLOW
22. G & B FLOW
23. R & B FLOW
24. R & G CHASE
25. R & B CHASE
26. Y & P CHASE
27. B & G CHASE
28. W& G CHASE
29. RAINBW CHASE
30. AUTO PROGRAME 31. DMX 512 MODE
11. COLOR
CHASE
12. CORUSCATE RUN
13. FAST FLOW1 (forward)
14. FAST FLOW2(backward)
15. ROLL CHASE
16. ROLL COLOR
17. MULCOLOR1
18. MULCOLOR2
19. MULCOLOR3
20. STROBE FLOW
----------------------------------------------------------------------------------------------------
LED Tube Light-Audio Type
-------------------------------------------------------------------------------------------------------------------------------------
LED Tube Light-Vedio Type
110V, 240V
LNT-C4
50mm
milky white
144pcs
Max.16.8W
IP44
Input Volt.
Range:
Controller:
Tube Dia:
Color of Tube:
Qty of LED:
Power Consumption:
Protection Rating:
LNT-C4
-------------------------------------------------------------------------------------------------------------------------------------
Applications:
Input Volt.
Range:
Operating Volt.:
Controller:
Tube Dia:
Color of Tube:
Qty of LED:
Power Consumption:
Protection Rating:
110V, 240V
DC 12V
LNT-C3
50mm
clear,milky white
144pcs
Max.16.8W
IP44
110V, 240V
DC 12V
LNT-C2
50mm
milky white
144pcs (R48, G48, B48)
Max.16.8W
IP44
Input Volt.
Range:
Operating Volt.:
Controller:
Tube Dia:
Color of Tube:
Qty of LED:
Power Consumption:
Protection Rating:
LED Tube Light-Digital Type
|
