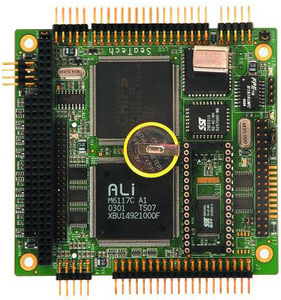

                                                      Model:     SX-340



  • Introduction

PC/104 GX Single board computer, with CPU and LCD/CRT/SSD/LAN

CPUAli M6117C 25Mhz-40Mhz
DRAM: 4M
LCD: VGA/MONO/STN/TFT LCD
CRT: SVGA
IDE Support two hard driver
DOCDOC(8M) on board and socket for DOC(8M-288M),FLASH        EPROM
Two RS232(COM1,COM3)

One TTL RS232/RS422/RS485 Selected(COM2)
LPT, FDD, 10M-BASED RJ-45 (Select),

Utility port (one PS/2 K/M, Reset, Beep and one TTL Serial port);

16 GPIO: 8 I/O input, 8 I/O output;

Watch-Dog;


  • Specifications

Contruction: PC/104 Single board construction

Power supply: +5V DV, 0.6A

Dimension: 96x90mm

Operation temperature: -20C--70C

Storey temperature: -40<C~+85<C

Humidity: 5% ~ 90% non-condensing

Power Consume:
