Robust Embedded System Pty. Ltd

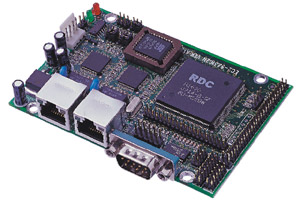

                                                      Model:     EC2-5231C2N



  • Introduction

2.5"Single Board Computer,with CPU and 2LAN



  • Features

R1620 microprocessor, 75MHz low-power CPU
Conformitied dual 10/100M Ethernet
Support two 16550 UART serial channels
Support two independed DMA channels
1MB memory address space
64KB I/O space
512K Flash
Single +5V power



  • Specifications

Construction: 2.5'single board construction
Processor: 16bit RISC CPU construction¬up to 75MHz£»
On-board LAN: Conformitied dual 10/100M Ethernet, RJ-45 interface
Serial comunication£ºSupport two 16550 UART serial channels£¬COM2 RS232/RS422/RS485 optional
Bus interface: Pluralistic address and data bus
Single addess bus A[19:0]
8bit/16bit external bus dynamic visit
1 MB memory address space(up to 512K for Flash, 896K for SDRAM)
64KB I/O space
One single low speed I/O device bus
8bit/16bit Biit ROM bus
DMA:Support two independed DMA channels
PIO: 22 PIO(I/O signal programmable,software enactment I/O is necessary)
Timer: there independed 16 bit timers and one independed programmable watch dog
Interrupt: 6 shieldable interrupts and one inshieldable interrupt
Power supply: single +5V Power supply
Dimension: 102mmx67mm
Operation Temperature:0~60°
Relative Humidity:5%~90%¬non-condensing
