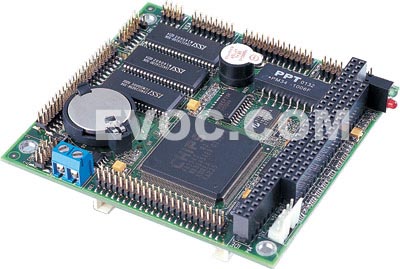

                                                      Model:     104-1371CLDN



  • Introduction

PC/104 386 Single board computer, with CPU and LCD/CRT/SSD/LAN



  • Features

PC/104 standard low power single board computer
Use Ali M6117C(System On Chip) chipset
Intel 386SX processor, 4MB EDO DRAM on board
LCD/CRT graphic controller, with 10M Ethernet on board
On board F65545, support TFT/DSTN/MONO LCD
With Compact Flash interface, IDE, FDD, two Parallel, one Serial interface
30.5us ¨C 512s programmable Watch Dog Timer, PS/2 Keyboard, mouse interfaces



  • Specifications



Contruction: PC/104 Single board construction
Processor: ALi M6117C chipsets, up to 40MHz, INTEL 386SX CPU
System chipset:NS CS5530A
System memory:4M EDO DRAM on board;
BIOS: AMI
On-board video:CHIPS F65545 1MB memory, flat display MONO/TFT/DSTN
LCD:Setting in BIOS TFT 800*600;
On-board LAN: Realtek RTL8019AS 10Mbps, NE2000 compatible;
IDE controller:Support two PIO hard disk;
USB interface:Two USB interfaces
Multi I/O interface:1 FDD, 1 parallel interface, 1 RS-232, 1 RS-232/485, 1 PS/2 Keyboard/mouse
CF interface:Support COMPACT FLASH card
Solid State Disk Interface:Compact Flash Disk-On-Chip
Watchdog timer: 30.5us to 512s programmable
Expansion bus: PC/104
Power supply : Single +5V power supply£¬5V/0.8A(typical)
Dimension : 146¡Á102mm
Operation Temperature:-20°---60°
Relative Humidity: - 5%-90% ¬non-condensing
