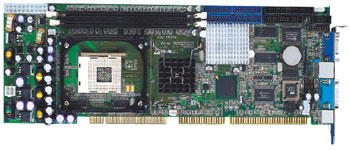

                                                      Model:     FSC-1715VN



  • Introduction

Socket 478 PICMG Full Size CPU Card with VGA/LAN interface





  • Features

400MHz system bus, Socket 478 Pentium 4 CPU
Intel 845DDR chipsets, 2.DDR200/266 DDR DIMM slots
powerful fuction with Ati RADEON 9200 Graphics accelerator, 32MB/64MB display memory
  1 10M/100Mbps Ethernet LAN controller,RJ-45 interface
  2 ATA66/100 IDE interfaces,4 USB Ver 1.1 interfaces



  • Specifications

Bus type:Completely compatible with PICMG 2.0 PCI/ISA bus standard
Processor: 400 MHz system bus, Socket478 Willamette or Northwood Pentium 4 Processor
System chipset:Intel 845DDR chipset
System memory:2 184-pin DDR DIMM slots,up to 2GB system memory
BIOS: AMI BIOS ,support ACPI power managment function
On-board video:ATi RADEON 9200 2D/3D graphic controller, 32MB/64MB DDR display memory, frequency up to 200Hz; Solution up 2048¡Á1536 32, support Direct¡Á8.1 and OpenGL 1.3 & Pentium 4 SSE, Inside HDTV decoder & hardware penetrate technology, make the quality of the graphic more clearly and frequently.
On-board LAN:Intel 10M/100Mbps Ethernet LAN,RJ-45 interface
IDE controller:2 ATA 33/66/100 channels
Multi I/O interfaces: 1 FDD£¬4 USB£¬1 parallel£¬2 RS-232£¬1 IrDA£¬1 PS/2 keyboard/mouse interfaces
Watch Dog: 256 level programmable, 1s/m resolution, time-out interrupt or system reset programmable
Hardware Monitoring:detect working power£¬CPU temperature and fans rotate speed primary
Power supply: +5V¡¢+12V£¬support AT/ATX
Dimension: 338mm¡Á122mm
Operation Temperature: 0
°--60°
Relative Humidity:5%--90% ¬Non-condensing
