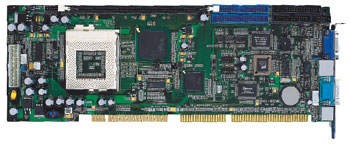

                                                      Model:     Models:FSC-1613VN

  • Introduction

Socket 370 PICMG Full-size CPU Card, with VGA/LAN Interface







  • Features

  • Socket 370 configuration£¬Intel 815E chipset, 66/100/133 MHz FSB
    168-pin DIMM¡Á1,up to 512MB PC133/100/66 SDRAM
    VGA/AGP control integrated within the chipset, support AGP 2X, 133 MHz
    Support 10/100 Base-T Ethernet





  • Specifications



Bus type: PICMG 2.0 PCI/ISA bus
Processor: Support Socket 370 FCPGAA configuration Celeron,Pentium III and Tualatin CPU
System chipset: Intel 815E support 66/100/133 MHz FSB
System memory:1 PC100/133 SDRAM DIMM slot,up to 512MB
BIOS:AMI 7.0 PnP BIOS
On-board video:2D/3D/DirectX graph accelerated controller integrated within the chipset
On-board LAN: Support 10/100 Base-T Ethernet controller
IDE controller: Dual ATA-100 IDE, support 4 IDE ATA100/66/33 MB/sec hardware
Multi I/O: One FDD, four USB,one parallel interface, two RS-232, one IrDA infrared interface, one PS/2 keyboard/mouse interface
Watchdog timer;1-255S/M£¬watchdog overtime interrupt or restoration system¡£
Power supply; +5V +12V£¬support AT/ATX Power supply
Dimension: 338mm¡Á122mm
Operation Temperature:0~60¡æ
Relative Humidity:5%~90%¬non-condensing
