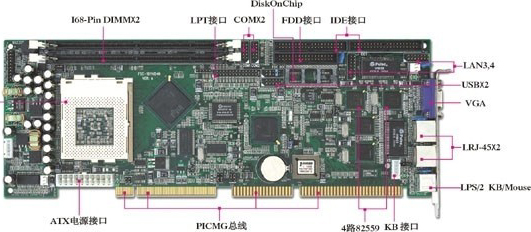

                                                      Model:     FSC-1611VD4N

  • Introduction

Socket 370 PICMG Full-size CPU Card, with VGA/SSD/4LAN

FSC-1611VD4N designs with INTEL 810E system chipset which conforms with PICMG full-size industrial motherboard standard, FSC-1611VD4N supports the latest Socket 370 66MHz/100MHz/133MHz processor. Apart from the common used







  • Features

  • Socket 370 configuration, support 66/100/133MHz FSB CPU
  • Intel810E chipset, stable and secure
  • Introduce exclusively mainboard integrated four Intel 82559 Ethernet controller
  • Integrate AGP hardware video acceleration
  • Hardware monitor
  • On-board ATX power supply interface





  • Specifications



Bus type

PICMG PCI/ISA bus

Processor

Support Socket 370 PPGA or PCPGA Celeron/Intel®Pentium®III/ VIA Cyrix-

System Chipset

Intel 810E support 66MHz/100MHz/133MHz FSB

System Memory

168pin 2up to 512MB

BIOS

Latest Award Modular BIOS Ver6.0

On-board video

AGP graphic acceleration controller integrated within the chip

On-board LAN

Four Intel 82559 10M/100Mbps Ethernet controller, RJ-45 interface

PCI IDE

Dual UltraDMA 33/66 IDE controller, support four IDE devices

Multi I/O interface

One FDD, two USB, one parallel port, two RS-232, one IrDA infrared interface, one PS/2 keyboard/mouse interface

Watchdog timer

16 level programmable, 0~30s

Hardware monitor

Winbond W83627 system status monitor, voltage, temp, and fan speed.

Solid state disk

Solid state disk M-system DiskOnChip flash disk

Power supply

+5V-+12VSupport AT/ATX Power supply

Dimension

338mm-122mm

Operation Temperature

0~60°

Relative Humidity

5%~90%:non-condensing
