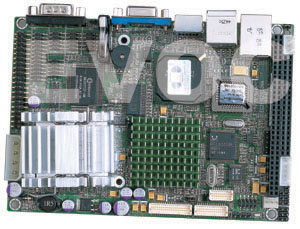

                                                      Model:     EC3-1621CLDNA



  • Introduction

3.5″GX Single Board Computer, with CPU and SDRAM LCD/CRT/SSD/LAN/Audio





  • Features

* VIA Eden low-power CPU on-board,without fans
*  Integrate S3 ProSavage 4 AGP4X graphic accelerater in system,support CRT and LCD display simultaneity, LCD support

   TFT/DSTN and LVDS interface
* 10/100Mbps Ethernet controller
* 4 COMs
* 4 bit digital input and 4 bit digital output
* AC’97 2.2 audio interface



  • Specifications

Bus type 3.5″single board construction

Processor VIA Eden ESP6000 low-power processor on-board, 100/133MHz FSB, EBGA sealed,without fans

System chipsetVIA VT8606(Twister-T)+ VIA VT82C686B chipset, 133MHz FSB

System memory1 144 SO-DIMM slot,up to 512MB SDRAM

BIOS Phoenix Award 6.0 PnP BIOS

On-board videoS3 ProSavage 4 2D/3D, AGP4X graphic acceleration controller integrated within VIA VT8606,shared 8/16/32MB system memory,support VGA interface,one LVDS interface,one TTL LCD interfaceLCD interface support 36 bit TFT/DSTN display screen, VGA resolution is up to 1920X1440, LCD resolution is up to 1600X1200

On-board LAN Single 10/100Base-T Ethernet

On-board Audio Support AC’97 2.2 sound coder, stereo I/O,MIC-in

IDE controller One ATA33/66/100 IDE interfacesupport two IDE devices

Multi I/O interfaceFour RS-232, two USB, one parallel interface, one PS/2 keyboard/mouse interface, one IrDA infrared interface

Solid state disk One CompactFlash DISK

Digital I/O 4 bit digital input and 4 bit digital output TTLinterface

Watchdog timer1-255M/S programmable, 510 level,time out interrupt or replacement

Hardware monitorMonitor voltage, CPU /temp and fan speed.

Extention bus One PC/104 interface

Power supply Supply AT/ATX power and ACPI power manegment standard,LED light on board

Dimension 146mm102mm

Operation Temperature0~60

Relative Humidity5%~90%non-condensing
