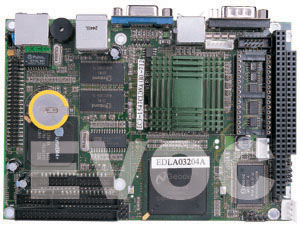

                                                      Model:     EC3-1547CLDNA(B)



  • Introduction

3.5″GX Single Board Computer, with CPU and SDRAM LCD/CRT/SSD/LAN/Audio





  • Features

GX1 single chip low-power CPU on-board
64MB SDRAM inside
SMI 712 LCD controller inside,support kinds of TFT/DSTN LCD screen
10/100Mbps PCI Ethernet interface
Audio interface
Single power



  • Specifications

Construction: 3.5″ single board construction
Processor: NS GX1 300MHz
System chipset: NS CS5530A
System memory:64MB SDRAM inside,144-pin SO-DIMM memory interface
On board KDS: 2K bytes
BIOS: 2MB Flash BIOS,Award PnP BIOS, according with APM 1.2 standard
On-board video:SMI 712 LCD/CRT video accelerator, 4MB SDRAM,support CRT and LCD display simultaneously , 44-pin (2.0mm)TTL LCD display interface
On-board LAN:Realtek RTL8100B 10/100M Ethenet controller, RJ-45 interface
On-board Audio :Support AC97 PCI audio interface, Mic IN、Line IN、Speak OUT
IDE controller: One 44-pin IDE interface,support two EIDE devices
Multi I/O interface:One FDD interface,two USB, one parallel interface, one RS-232/422/485, one PS/2 K/M Interface, one 115kbps IrDA interface
DiskOnChip Interface: DiskOnChip SSD
Watchdog timer: 1-255 minutes programmable
Expansion bus: PC/104
Power supply : AT or ATX,+5V power (typical 5V/1.5A)
Dimension : 146 * 102mm
Operation Temperature: 0~60℃
Humidity: 5%~90%,Non-condensing
