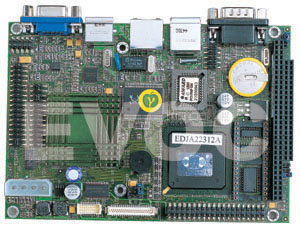

                                                      Model:     EC3-1541CLDNA(B)



  • Introduction

3.5″GX Single board computer, with CPU and LCD/CRT/SSD/LAN/Audio





  • Features

NS GX1 low-power CPU,on-board
0~60℃ operation without CPU fan, enhanced system reliability
LCD/CRT display controller, support 18bit TFT display
LVDS interface
10/100Mbps PCI Ethernet interface
AC97 PCI audio interface



  • Specifications

Construction: 3.5″ Single board construction
Processor: On-board low power consumption NS GX CPU 300MHz,able to operated without fan
System chipset: NS CS5530A
System memory:144-pin SO-DIMM support up to 256 MB SDRAM
BIOS: Award PnP BIOS
On-board video:NS CX5530A chipset 1.5~4MB shared memory, support CRT and 18bit TFT LCD display simultaneously ,support TTL and LVDS interface, CRT resolution is up to 1024 ?768 ?24bpp,1280 ?1024 ?8bpp,LCD TFT resolution is up to 1280 ?102 4 ?18bpp
On-board LAN:Realtek RTL8100B 10/100M Ethenet controller, RJ-45 interface
On-board Audio :Support AC97 PCI audio interface, Mic IN、Line IN、Speak OUT
IDE controller: One Ultra33 channel,support two EIDE devices
Multi I/O interface:One FDD interface,two USB, one parallel interface two RS-232, one PS/2 K/M Interface, one 115kbps IrDA interface
DiskOnChip Interface: DiskOnChip SSD
Watchdog timer: 16 level programmable,0~30s
Expansion bus: PC/104
Power supply : +5V /1.1A Single power supply(typical)
Dimension : 146 ?102mm
Operation Temperature: 0~60℃
Humidity: 5%~90%,Non-condensing
